All these notes will be split out into weeks
NET 330
Resources:
Basic Subnet Chart: https://www.ad-net.com.tw/subnet-chart-cidr-values/
VLSM Calculator: http://vlsmcalc.com/
OSPF:
https://networklessons.com/ospf/basic-ospf-configuration
https://study-ccna.com/ospf-configuration/
Class: Refresher
Week 1: 8/29/22
- Dartmouth had hundreds of subnets just in the datacenter
- 2^32 IPv4 addresses | 32 bits
| Letter | Packet |
|
|
- grandma@aol.com
- ^Mailbox ^ Mail server → translates to ip address
TODO:
- Download Packet Tracer 8.1.1
Class: Subnetting, VLANS, & Cisco Commands
Week 2: 9/5/22
- Find the patterns

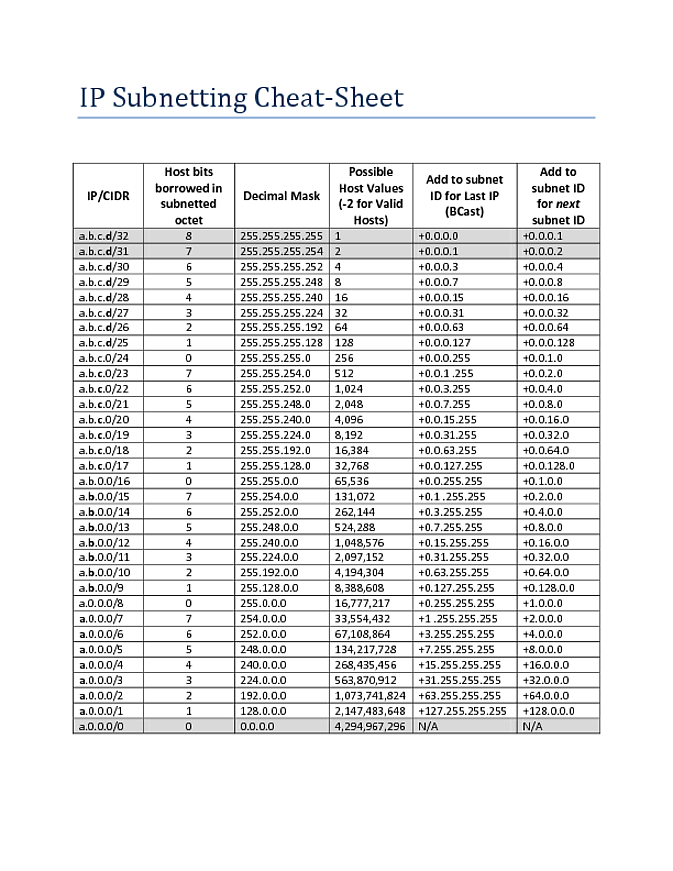

Subnetting
- Allow very common subnets: **/24 (256 IP’s, 254 Usable), /23 (512 IP’s, 510 Usable), /22 (1024 IP’s, 1022 Usable), /30 (4 IP’s, 2 Usable), /29 **(8 IP’s, 6 Usable)
- Organizations are “assigned” a network address to use on the internet
- 216.93.144.0/20
- All champlain IPs start with the same 20 bits
- Last 12 bits are used for host ID
- 2^12 IPs can be used
- All zeros and all 1’s in the host ID can’t be used
- 216.93.144.0/20
- But a /20 network cna support 4094 hosts - do we want them all on the same network?
- Lots of broadcast packets congest the network
- Machines are slowed by trying to process them
- Anyone can contact anyone else on the network!
- Our network ID can’t change but what if we took some host ID bits to create a subnet ID
- These bits are then ”added” to the network ID
- For example if we used 4 bits for the subnet ID
- Wireless networks are normally larger networks because most devices are looking for information outside the network. Larger network means less communication inside the network.
- Smaller networks are found in places where devices communicate within the network. For example a data center. (Network to Network firewall rules instead of Host to Host rules)
- Always start with the largest subnet first: Larger subnet boundaries are always valid for smallers ones, but smaller boundaries are not always valid for larger ones
- All 0’s in the Host ID refers to the Network itself - cannot be assigned to a host
- All 1’s in the **Host ID **is the broadcast -cannot be assigned to a host
- So if we have n bits in our Host ID, we can assign 2^2 -2 IP addresses
VLANS
- Multilayer switching
- A virtual LAN is a group of devices on one or more physical LANs that are configured to communicate as if they were on the same LAN.
- VLANs define broadcast domains in a Layer 2 network
- Need a router to pass packets between 2 different VLANs
- Access Ports: Can only be assigned to/carry traffic from a single VLAN
- Used to connect end device to a switch
- Trunk Ports: Carry traffic from multiple VLANs - used to connect switches
- Will “tag” packets with the proper VLAN ID
CISCO IOS Config File
- Startup-config: This is the last version that was saved. If the router/switch was restarted, this is the config that would load
- Running-config: Whats running in memory. It has all of the config changes made at the command line since it was last saved.
- User EXEC Mode: Basic monitoring and status commands
- Prompt it: router>
- Type enable to get to Privileged
- Privileged EXEC Mode: Administrative access
- Prompt: router#
- Type **config **to get to the config mode
- Config EXEC MODE: config mode
- Prompt: router(config)#
- The question mark ?:
- Just hit enter and it will show everything you can do
- Tab works in IOS
Homework: Reading 10.10 DHCP
Week 3: 9/12/22
The DHCP Server and Routers
- Allows hosts to dynamically obtain its IP address

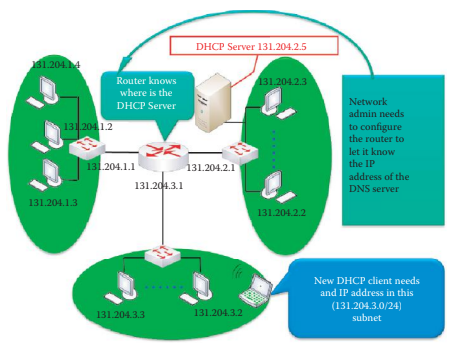

- Above shows a DHCP server setup on a network which has 3 subnets
- The router must be setup in a way that it knows the IP address of the DHCP server
- DHCP must work across routers or through the intervention of BOOTP relay agents
- DHCP DORA (Discover, Offer, Request, Accept)
- DHCP Port Client 68 and Server 67
- DHCP options field:
- Subnet mask
- Default Gateway
- Lease Time
- DNS Server
- Most DHCP servers are configured to let a client reuse a previously allocated IP
- This can reduce the amount of broadcast traffic
- A client will broadcast a DHCPREQUEST message on its local subnet.
- This message will contain a “Requested IP”
Class: DHCP
Week 3: 9/12/22
Dynamic Host Configuration Protocol
What is DHCP?
- Statically: Manually entered by the administrator (Boo static is for nerds in data centers)
- Dynamically: Automatically assigned by the network
- Key information that we need:
- IP address
- Subnet mask
- Default gateway
- DNS (Domain Name Server)
How does DHCP Work?
- Send out Broadcast (Discover)
- “I need an IP” - New device
- Dest IP: 255.255.255.255:68
- Src IP: 0.0.0.0:67
- Broadcast will go out any ports on the VLAN
- DHCP Server sends out Offer (Offer)
a. DHCP over different VLANs:
- Relay Agent (DHCP Relay, DHCP helper) Cisco calls it the IP helper
- Router needs to know the IP address of DHCP Server
- This is so it can unicast it and send over the information
- DHCP server: 192.168.10.100 | Relay Agent: 192.168.10.100
- Router would forwards as unicast to 192.168.10.100
- Src of unicast: The Default gateway address for the VLAN
- This is how the DHCP Server knows where to send the Offer
- DHCP is like a person lost in new york
- DHCP uses UDP
- Server Port: 67
- Client Port: 68
- DHCP has two primary Operation Phases:
- Initialization: Client request
- Renewal: Client asks to renew its lease
- Key Fields
- Operation Code:
- Hardware Type:
- **Hardware Length: **

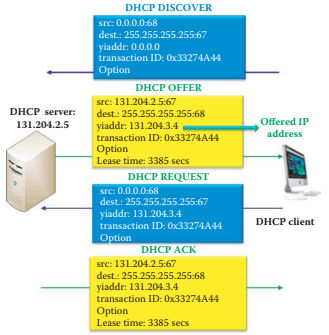

- DORA:
- Discover: Client attempts to discover a DHCP server
- If you spoof Discover you can take all the IP addresses
- Offer: IP lease offer from the server to client
- Request: Client requests to use the IP lease sent by the server
- Acknowledgement: Server sends ack to client that the lease was accepted
- Without this process you can have DHCP exhaustion attacks
- Discover: Client attempts to discover a DHCP server
- DHCP snooping
- Looks at the access port and if one port is asking for more than 1 IP it will shut it down
- BOOTP: RFC 951
- Only Discover and Offer
- DHCP Renewal
- T1 Renewing: Process for client to request continued use of the its lease
- This is at** 50%** through the lease time
- Just sends to direct IP address
- Using unicast because it knows the IP address of the DHCP server
- The client sends DHCP Request packets directly to the server
- If the server responds with a DHCP Ack, the IP lease is renewed and its time clock restarts.
- If server doesn’t respond at T1 then it does to T2
- T2 Rebinding: If the server doesn’t respond to the clients renewal requests we eventually reach the rebinding phase
- This is at** 87.5%** through the lease time
- Gets angry and sends a broadcast to look for another DHCP server
- So it’s allowed to continue using the same IP
- **DHCP Expiration: **If nothing responds by the time the lease is over
- IP goes to a 169.125.4.0
- Self assign address
- IP goes to a 169.125.4.0
- DHCP Relay:
- Broadcast are Layer 2 only
- Need a DHCP relay or Helper
- Picks up broadcast and turns it to unicast and gets it to the DHCP Server
- Need a DHCP relay or Helper
- Cisco:
- CISCO IOS uses the “ip helper-address”
- If DHCP server is 10.16.1.50
- (Config) interface vlan 100
- (Config-IP) ip helper-address 10.16.1.50
- Broadcast are Layer 2 only
- T1 Renewing: Process for client to request continued use of the its lease
Class: Campus and Enterprise Network Design Layers
Week 4: 9/19/22

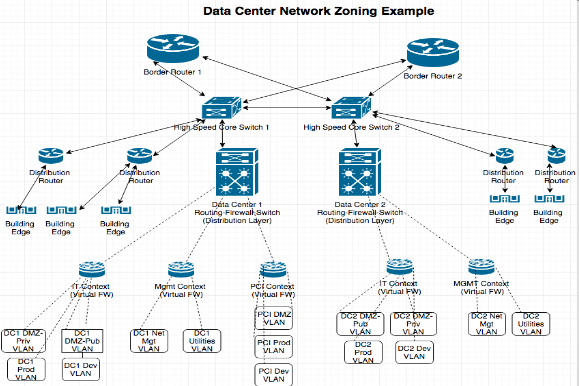

Campus and Enterprise Routing
Internal
Edge Layer/Access Layer (Layer 2)
- Building Switches - A switch that controls only it’s building
- End points (Drops)
- Access Point (isn’t of VLANs it’s just SSID)
Distribution Layer (Layer 3)
- Internal Router (OSPF most used internal)
- Distribution Router - A router that is a MLS that takes in a other switches
- QoS Policies are managed / Routing filtering
Core Layer (Layer 2)
- High speed layer 2 (Fast!!!!)
- Core Switches - Connect to each other and link the Distributions Area’s
- Just to connect switches on 1 core vlan
- The most powerful in terms of raw forwarding power
- 10, 40, 100 GBps
- Network Backbone
Border (Layer 3)
- External routing (BGP used for external)
- Border Router - Connects to core switch and ISP
External
**Internet 2 **
Homework: Reading 2.1 DNS
Week 5: 9/26/22
- DNS RFC 1034
- DNS is a distributed database
- DNS runs on layer 7
- Consists of multiple name servers - Name server is a server that contains IP addresses or serviced linked to different URLs or host names
- Types:
- A - Name is Hostname Value is IP Address
- NS Authoritative name server
- CNAME - canonical name
- MX - Mail server
- TCP and UDP 53
Class: Campus and Enterprise Network Design Layers
Week 5: 9/26/22
Class: NAT
Week 6: 10/3/22
NAT (Network Address Translation)
- Is a method of remapping on IP address space into another
- Rewriting the layer 3 and often layer 4 headers

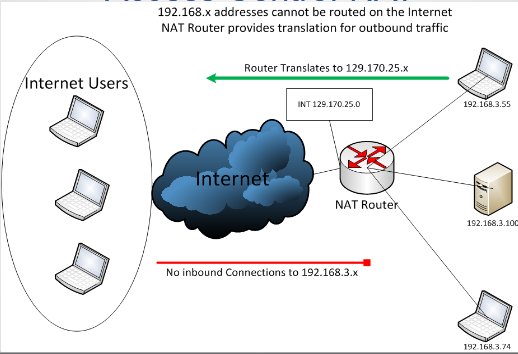

NAT Router
- Keep track of those translations in a table so it knows how to send inbound packets back to the right client
- This may also require rewriting the Layer 4 header
- Source port TCP/UDP often used to track translations

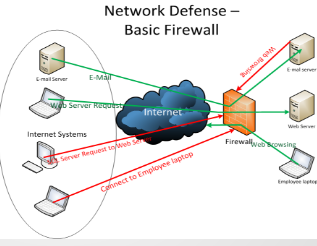

NAT Security
- Wasn’t intended for security
- This is because an external IP can’t directly connect to the internal client

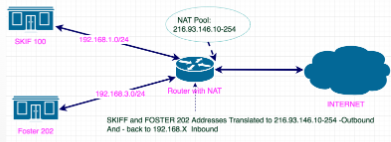

IP Masquerading
- The private source ip address that is changed into a public address as the ‘new’ source address
- In Foster and Skiff, we use IP Masquerading for our NAT setup
- The translation tables are flushed after a defined period unless new traffic refreshes their state.
- Masquerading routers keeps stateful translation tables of each conversation to “remember” the original source address
Types of NAT
- One-to-One IP mapping
- Static NAT
- Many-to-Many IP mapping
- Dynamic NAT
- Many-to-One IP mapping (Very Common)
- Port Address Translation
- IP Masquerading
- Many to one
- Port Address Translation
Static NAT
- Doesn’t scale well
- Allows the Network Admin to configure translation table entries for permanent use
Dynamic NAT
- Set aside a pool of public addresses
- Dynamic NAT is used when PAT is not supported
- This isn’t really used anymore
Port Address Translation (PAT)
- One IP address for lots of internal IP addresses
- Source TCP port number (Ephemeral Port)
- Could have 65k connections to one IP
Configuring NAT in Cisco
- Define the “inside” and “outside interfaces”
- interface serial 0/0/0
- (config-if)#ip nat outside
- Set NAT Rules
3. Static mappings
4. PAT/Dynamic pool assignments
Wildcard Subnet Masks
- Just subtract 255.255.255.255 from subnet
- 255.255.255.0 becomes 0.0.0.255
- 255.255.255.252 becomes 0.0.0.3
- 255.255.240.0 becomes 0.0.15.255
Kahoot
- Where does most internal routing occur?
- Distribution
- /23 has to have an even number in the third octet
- /22 multiple of 4 in the third octet
External
—--------
Border
Core
Distribution
Edge
—--------
Internal
Homework: OSPF
Week 9: 10/23/22

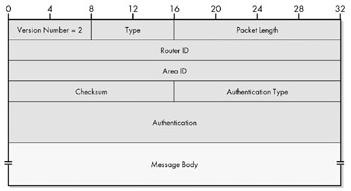

OSPF (Open Shortest Path First)
- Took RIPs position
- Uses the more capable
- Using link-state, routing algorithm, with each router maintaining a database containing information about the state and topology of the internetwork
- Many of RIP’s problems are due to it being a distance-vector protocol
- OSPF version 2 July 1991
- Developed to be a more capable interior routing protocol

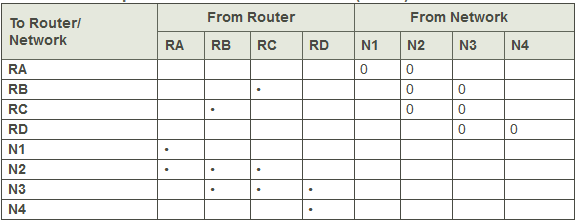

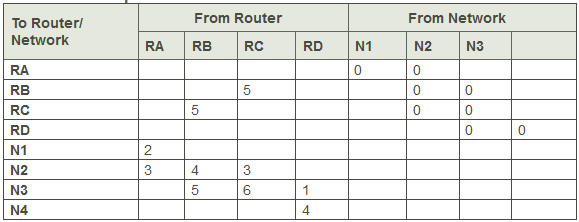

LSDB (Link-State Database)
- Router RA connects to Network N1 to Network N2
- Routers TB and RC connect Network N2 to Network N3
- Router RD connects Network N3 to Network N4
- Each of the routers running OSPF is considered a peer of the others. They maintain a link-state database that contains information about the topology of the entire AS.
OSPF Hierarchical Topology
- To allow for better control and management over larger internetworks, OSPF allows a large AS to be structured into a hierarchical form.
Router Roles in OSPF Hierarchical Topology
- Internal Routers
- These are routers that are connected only to other routers or networks within a single area
- Area Border Routers
- These are routers that connect to routers or networks in more than one area
- Backbone Routers
- These are tours that are a part of the OSPF backbone. By definition these include all area border routers, since those routers pass routing information between areas.

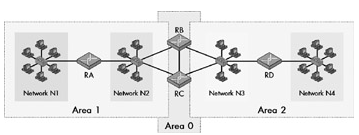

- Area 1 contains Network N1, Router TA, Network N2, Router RB,. and Router RC
- Area 2 contains Router RB. Router RC, Network N3, Router RD, and Network N4

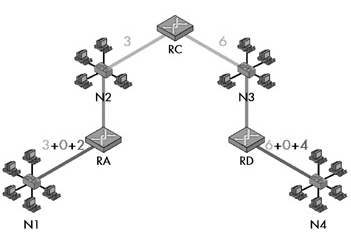

OSPF Route Determination Using SPF Trees
The SPF Tree
- Router generates a shortest-path first tree (SPF Tree) from its LSDB.
- This step uses more calculations to put cost into the mix
OSPF Router Determination
OSPF General Operations
- Main job is to facilitate the exchange of routing information between routers
OSPF Message Types
- _Hello _| Form of greeting to allow a router to discover other adjacent routers
- Database Description | contain descriptions of the topology. Communicating a large LSDB may require several messages
- _Link State Request _| These messages are used by one router to request updated information about a portion of the LSDB from another router
- _Link State Update _| These messages contain updated information about the state of certain links on the LSDB.
- _Link State Acknowledgment _| These messages provide reliability to the link-state exchange process by explicitly acknowledging receipt of a link state update.

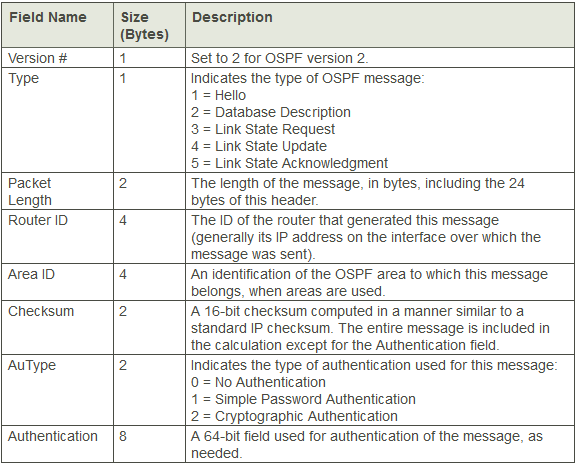

OSPF Common Header Format
Classwork: Interior Routing
Week 9: 10/23/22
Resources:
https://networklessons.com/ospf/basic-ospf-configuration
https://study-ccna.com/ospf-configuration/
What does a router do?
- How does the router over in skiff know about networks in Foster?
- Tell packets where to go
- Switch looks at MAC Address
- Routers reads IP
- Day in the life of a router
- Finds Path
- Forward Packet, Forward Packet
- Find alternate path
- Forward Packet
- Repeat until powered off
Routing versus Forwarding
- Routing = building maps and giving directions
- Forwarding = moving packets between interfaces according to the “Directions”
Routing Tables
- Feed the Forwarding tables
IP Routing - finding the path
- Path derived from information received from a routing protocol
- Several alternative paths may exist
- Best path stored in forwarding table
- Decisions are updated periodically or as topology changes

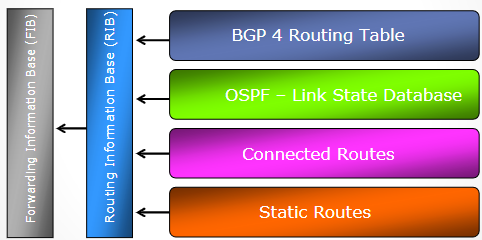

RIBs and FIBs
- FIBs is the Forwarding Table
- It contains destinations and the interfaces to get to those destinations
- Used by the router to figure out where to send the packets
- Careful! Some people still call this route!
- RIB is the Routing Table
- It contains a list of all the destinations and the various next hops used to get to those destinations - and lots of other information too!
- One destination can have lots of possible next-hops - only bgest next hop goes into the FIB
Routing Protocols
- Routers use “Routing protocols” to exchange routing information with each other
- _IGP _(Interior Gateway Protocol) is used to refer to the process running on routers inside an organization’s network
- _EGP _(Exterior Gateway Protocol) is used to refer to the process running between routers bordering directly connected to networks
- The reason we have 2 different protocols is because of administrative boundaries
- Don’t want to share your information with the world
What is an IGP?
- Interior Gateway Protocol
- Within an Organization
- Carries information about internal infrastructure prefixes
- Two widely used IGPs:
- OSPF (Open Shortest Path First)
- ISIS
- RIP
What is an EGP?
- Exterior Gateway Protocol
- Used to convey routing information between Organization
- Decoupled from the IGP
- Current widely-used EGP is BGP (Border Gateway Protocol)
- BGP is the routing protocol of the internet
- Chinese government uses BGP for the great firewall
Why Do We Need an EGP?
- Scaling to large networking
- Hierarchy
- Limit scope of failure
- Define Administrative Boundary
- Policy
- Control reachability of prefixes
- Merge separate organizations
- Connect multiple IGPs

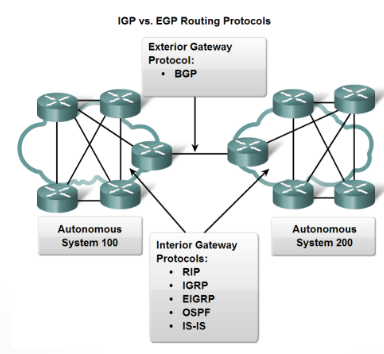

Interior versus Exterior Routing Protocols
- Interior
- Automatic neighbor discovery
- Generally trust your IGP routers
- Prefixes go to all IGP routers
- Binds routers in one Autonomous System (AS) Together
- Exterior
- Specifically configured peers
- Connecting with outside networks
- Set administrative boundaries
- Binds AS’s together
Dynamic IGP Types
- Distance Vector
- Routers send out broadcasts/multicasts with their routing table
- Other routers listen, And update their tables accordingly
- Typically send tables every 30-60 Seconds
- Routing Preference is based solely on Hops (how many routers between networks)
- Noisy (lot’s of broadcasts), slow to converge, does not scale to large complex networks
- RIP v2 is common example
- Link State IGP
- More popular method for IGP
- Routers figure out who their neighbors
- After initial convergence - only sends Hello’s (keep-alices) and Link State updates with changes
- Uses more advanced route-selection metrics (notably - bandwidth)
- Open Shortest Path First (OSPF) is most popular IGP
OSPF
- Does NOT use a transport protocol (UDP or TCP)
- It is its own layer 4 - IP Protocol 89
- Uses “Area” to determine which routers listen/talk to each other
- Can just be one, or many if you have a large network
- When doing firewalls look out for blocking all non UDP or TCP packets
Configuring OSPF
- Create an OSPF instance: The Process ID specific to that router
- #(config) router ospf _instance_number _(usually just 1)
- Do don’t confuse** “instance” **and “area”
- Instance: A router can have multiple OSPF Processes running. IMagine a router connecting two totally different organizations and configuring OSPF for both
- Area: Must be the same among all routers that need to share information within a particular instance. If single use network use Area 0
- Add all of the **Directly Connected Networks **on that router
3. Network address with **wildcard mask **and area #
4. #(config-router) network 192.168.0.0 0.0.0.255 area 0
Classwork: BGP
Week 10: 10/31/22
BPG - Routing Protocol of Internet
- IGP is interior and BPG is exterior
- **Border Gateway Protocol (BPG): **is the EGP used on the Internet
- Echanges routing and reachability information among autonomous systems (AS) on the Internet
- The protocol is classified as a path vector protocol
AS
- Autonomous Systems
- A Collection of connected Internet Protocol (IP) routing prefixes
- Under the control of a single administrative entity (e.g company, university, ISP)
AS Numbers
- A unique ASN is allocated to each AS for use in BGP routing
- AS numbers are important because the ASN uniquely identifies each (aggregated) network on the Internet
- Until 2007, AS numbers were defined as 16-bit integers, which allowed for a maximum of 65536 assignments
- Now, registries can hand out 32 bit AS numbers (over 4 Billion)
BGP Operations
- BGP neighbors, called peers, are established by manual configuration between routers
- Creates a TCP session on port 179. Is its own protocol (be mindful of this when setting firewall rules)
- A BGP speaker sends 19-byte keep-alive messages every 60 seconds to maintain the connection
- Amount routing protocols, BPG is unique in using TCP as its transport protocol
- Others are their own layer 5 Protocols
BGP Peering
- So, organizations must “peer” with their ISP(s) and other networks with which they share an external link.
- This allows for multi-homed networks (aka multiple connections to the Internet).
- Your AS will be advertised through your multiple peers - this allows multiple paths to your IP networks from the Internet
- Other routers pick the best “path” to your network

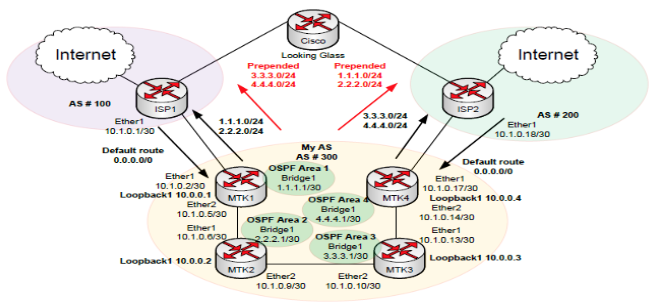

Multi-homed Peering
BGP - Path Vector Protocol
- Distance Vector Protocols
- Like TIP- use “distance” as a router selection metric
- Routing table includes how many hops/routers to a remote network
- Only knows IP of next router -not the full path to destination
- Path Vector Protocols - Like BGP
- Routing table includes the “path” of AS numbers to get to remote networks]

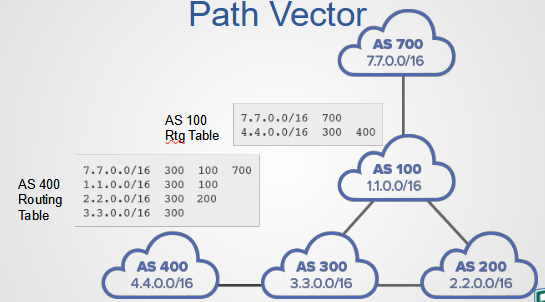

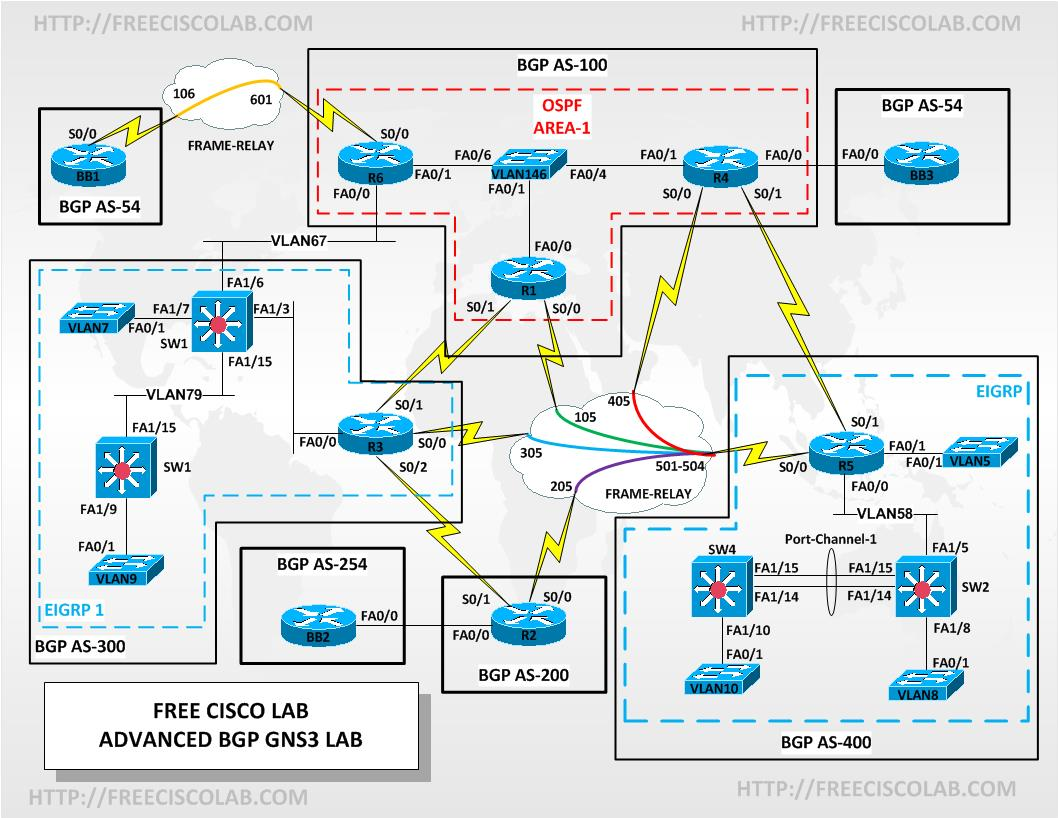

Path Vector
BGP - Best Path Algorithm
- Best Path Selection Algorithm is used to choose and install the best routes into the router’s routing table
- The full Internet BGP routing table includes over 400,000 routes
- BGP router can receive numerous copies of these routes from various providers
- So, it has to compare the multiple routing tables and choose the optimal route on the router.

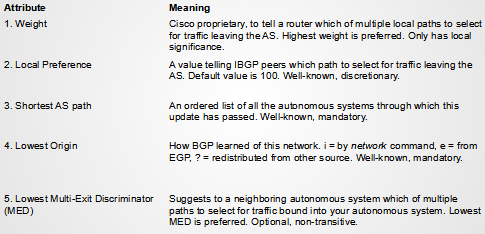

**BGP Attributes for Selecting Path
Configuring BGP
- Create BGP instance (instance number is the AS number)
- Identify peer neighbors by IP address
- Identify any networks that the router is responsible to advertise
Code:
Define Router instance:
router bgp {AS_Number_for_Router}
router bgp 1010
Identify peers
neighbor {ip_of_peer} remote as {as_number_of_peer}
neighbor 192.168.1.2 remote-as 2352
Advertise Networks
network {network} mask {subnet_mask}
network 10.10.52.0 mask 255.255.255.0
Playbook:
enable
config t
router bgp {AS_Number_for_Router}
neighbor {ip_of_peer} remote as {as_number_of_peer}
network {network} mask {subnet_mask}
Classwork: IPSEC
Week 11: 10/7/2022
Site to Site:
VPN
- Encapsulate packet in another header of the destination Router
- Traversing internet → exposed ( Need the encryption from VPN)
- Encrypting layer 3+ for VPN
TCP/IP Security:
TLS/SSL
- Transport Layer Security (TLS)/Secure Sockets Layer (SSL)
- Layer 5+ Protection
- Widely used to protect the data portion of TCP/IP communication
- Protects against eavesdropping (confidentiality) and data payload tampering (integrity).
- Offers certificate-based protection against spoofing (Authentication)
IPSEC
- IS NOT A PROTOCOL - SUITE OF PROTOCOLS
- Internet Protocol Security
- Layer 3 (network layer) protection
- Widely used to secure communications on Virtual Private Networks (VPN)
- Can protect against eavesdropping, tampering, and spoofing
IPSEC Concepts:
Two main wire-level protocols
- AH (Authentication Header): Authentication, Integrity, and Non-repudiation
- ESP (Encapsulating Security Payload): Confidentiality plus Authentication, Integrity and Non-repudiation
- Typically one or the other (although possible to use together)
Two Modes: Both supported by AH and ESP
- **Transport: **Only the payload of IP is encrypted and/or authenticated. IP Header not modified
- **Tunnel: ** The entire IP packet is encrypted and/or authenticated. Encapsulated into an new IP packet with new header
Security Association (SA)
- All of the parameters needed for an IPsex session (modes, algorithms, keys etc…)
- Both sides must agree on the SA for secure communication to work
AH and ESP:
Authentication Header
- Header added to IP packet
- Includes:
- Security Parameters Index (SPI): 32 bit identifier to tell recipient which IPSEC “conversation” this packet belongs
- Integrity Check Value (ICV): The output (aka Message Digest) from a hash function (MD5, SHA-256…) performed on the IP packet
Encapsulating Security Payload (ESP)
- Uses agreed upon encryption algorithm and keys to encrypt payload
- Transport Mode encrypts layers 4-7 of original packet
- Tunnel Mode encrypts layers 3-7 of original packet
- Authentication is optional
- Uses ICV just like AH

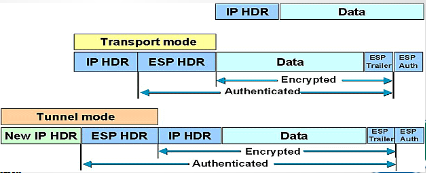

Tunnel and Transport Modes
Shaded shows authenticated and/or encrypted components
Transport Mode
- Only the payload is authenticated and/or encrypted
Tunnel Mode - Entire packet is authenticated and/or encrypted

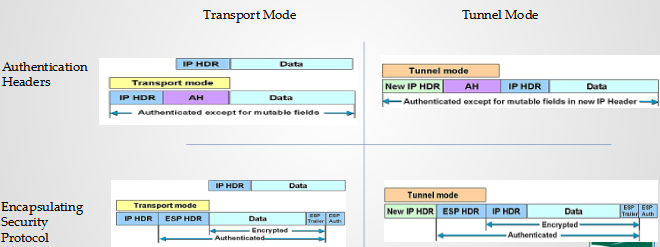

AH and ESP -Transport and Tunnel

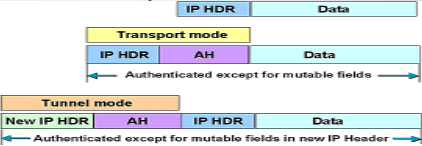

AH IPSEC
ESP IPSEC
The IPSEC Matrix
Security Associations:
Security Association (SA)
- The set of algorithms and keys used to encrypt and/or authenticate **one direction **of a flow.
- Therefore, **normal bi-directional traffic requires a pair of SA’s **to secure the flow.
- Devices keep track of SA’s in the Security Association Database (SADB)
- Security Parameter Index (SPI) is an SA’s 32-bit index id in the SADB
- The SPI plus the destination IP uniquely identifies the SA for a packet
Security Associations and ISAKMP
- **Internet Key Exchange (IKE) **is the set of protocols used to set up a Security Association (SA)
- Internet Security Association and Key Management Protocol (ISAKMP) is the negotiation protocol that lets two hosts agree on how to build an IPsec security association (SA).
- IKE uses ISAKMP to set up the SA for IPsec to use
- IKE creates the cryptography keys used to authenticate peers
SAs and ISAKMP
ISAKMP separates negotiation into two phases
- Phase 1: “Main Mode”
- Creates a secure channel for IKE to exchange SA key material
- Phase 2: “Quick Mode”
- Uses the first channel to exchange key material
- Creates the tunnel that protects the actual data
IPSEC Configuration - Cisco Example
Phase 1 - IKE Policy
enable
config t
crypto ikev1 policy 10
authentication pre-share
encryption aes-256
hash sha
group 2
lifetime 86400
Phase 2 - Transform Set
crypto ipsec ikev1 transform-set ESP-AES-256-SHA esp-aes-256 esp-sha-hmac
IPSEC Today
- AH rarely used
- Popular with Site-to-Site VPNs
TLS and IPSEC
TLS
- As it work with Layers 5+ much easier from a networking perspective
- As it work with Layers 5+, applications must be coded to support it
- Great for securing services with many dynamic clients
- Works better with Network Address Translation (NAT)
IPSEC
- Secures all IP flows between the two endpoints
- As it works at Layer 3, no application coding required
- As it works at Layer 3, network must be configured to support it
- Great for securing VPN’s
Tips and Tricks
- Using a “!” will leave a comment in Cisco (good for comments)
Cisco IPsec:
Router A:
Create an ISAKMP policy for Phase 1 negotiations for the L2L tunnels.
enable
config t
crypto isakmp policy 10
encryption aes
hash sha256
authentication pre-share
group 14
Specify the pre-shared key and the remote peer address | to match for the L2L tunnel.
crypto isakmp key vpnuser address 10.0.0.2
Create the Phase 2 policy for IPsec negotiation.
crypto ipsec transform-set myset esp-aes esp-sha256-hmac
Create an ACL for the traffic to be encrypted. In this example, the traffic from 10.1.1.0/24 to 172.16.2.0/24 is encrypted. The traffic which does not match the access list is unencrypted for the Internet.
access-list 100 permit ip 10.1.1.0 0.0.0.255 172.16.2.0 0.0.0.255
Create the actual crypto map. Specify an access control list (ACL), which defines the proxy identities (local and remote host/networks).
crypto map mymap 10 ipsec-isakmp
set peer 10.0.0.2
set transform-set myset
match address 100
interface GigabitEthernet0/1
ip address 10.1.1.2 255.255.255.0
Apply the crypto map on the outside interface.
interface GigabitEthernet0/0
ip address 172.16.1.1 255.255.255.0
crypto map mymap
Route to the default gateway
ip route 0.0.0.0 0.0.0.0 172.16.1.2
Router B:
Create an ISAKMP policy for Phase 1 negotiations for the L2L tunnels.
enable
config t
crypto isakmp policy 10
encryption aes
hash sha256
authentication pre-share
group 14
Specify the pre-shared key and the remote peer address to match for the L2L tunnel.
crypto isakmp key vpnuser address 172.16.1.1
Create the Phase 2 policy for IPsec negotiation.
crypto ipsec transform-set myset esp-aes esp-sha256-hmac
Create an ACL for the traffic to be encrypted. In this example, the traffic from 172.16.2.0/24 to 10.1.1.0/24 is encrypted. The traffic which does not match the access list is unencrypted for the Internet.
access-list 100 permit ip 172.16.2.0 0.0.0.255 10.1.1.0 0.0.0.255
Create the actual crypto map. Specify an access control list (ACL), which defines the proxy identities (local and remote host/networks).
crypto map mymap 10 ipsec-isakmp
set peer 172.16.1.1
set transform-set myset
match address 100
interface GigabitEthernet0/1
ip address 172.16.2.1 255.255.255.0
Apply the crypto map on the outside interface.
interface GigabitEthernet0/0
ip address 10.0.0.2 255.255.255.0
crypto map mymap
Route to the default gateway.
ip route 0.0.0.0 0.0.0.0 10.0.01
Router A:
Verify it’s working
enable
show crypto ipsec sa
Classwork: Zoning and ACL
Week 12: 11/14/2022
Reasons to Segment a Network:
- Reduce size of Broadcast domains
- Restrict unnecessary traffic crossing long distance and/or slow links
- Conserve Public IP addresses with an organized NAT implementation
- Security!
Security and Network Segmentation:
- What is one of the primary rules of information security
- Least Privilege
- Providing network access to servers/services introduces risk- therefore limit access to only those remote systems that need it
Least Privilege for Network Access:

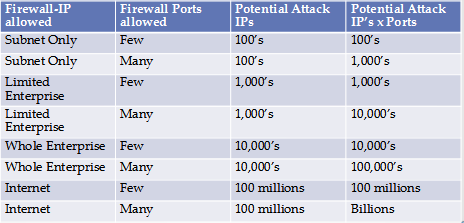

Risk Matrix:
(Want to be as far up this as possible WHILE having functionality)
Network-based Defenses: Access Control
- How is the system connected to the network?
- Not connected to any network (stand-alone)?
- The best network defense
- On a private network (not the Internet)?
- Highly secure environments (military, utility grid…) may run separate networks
- On the Internet?
- Not connected to any network (stand-alone)?
- Use network connections and routing devices to control access to a system
Network Defense Techniques:
- Technical Solutions
- Network Address Translation (NAT)
- Access Control Lists (ACLs)
- Firewalls
- Planning/Layout Solutions
- Network Zoning
Network-based Defenses: Access Control
- Network Address Translation:
- Using private IP addresses internally and translating to “public” IP’s when communicating on Internet
- Private IP Address
- 10.0.0.0
- 192.168.0.0
- 172.16.0.0
- Organizations use private addresses on the local network
- Router translates private to public IP’s and keeps track of translation in a table
Access Control-NAT:
Network-based Defenses: Access Control
- Routers: devices that “route” traffic between different networks (think Post Office)
- Can create routing rule to control which networks can communicate
- Can create Access Control Lists (ACLs) to drop certain types of traffic
- Spoofed addresses
- Certain protocols
Network-based Defenses: Firewalls
- Device that controls traffic in and out of a network based on ruleset
Layer 4 Firewalls:
Rules based on Layer 3:
- IP Addresses of both internal and external computers
- e.g. allow all external systems to 170.129 (Public).20.101
- Allow 153.104.15.6 to 170.129 (Public).118.112
- Allow 153.104.15.0/24 to 170.129 (Public).18.0/24
- Deny Any to 170.129 (Public).15.0/24
And Layer 4 “Port Numbers”
- Such as Port 80 (HTTP), 443 (HTTPS), 3389 (RDP)
- e.g. allow all external systems to 170.129 (Public).20.101 on port 80
- Allow 153.104.15.6:3389 to 170.129 (Public).118.112:3389
- Allow 153.104.15.0/24 to 170.129 (Public).18.0/24 on port 443
- Deny Any to 170.129 (Public).15.0/24 on port 3389
Layer 7 - Application Firewalls:
- Newer Firewalls
- Can inspect entire packet – including the data
- Can set rules on layers 3 and 4 plus:
- Info in the data such as URLs
- Particular applications, regardless of ports
- Examples:
- Allow port 80 (HTTP) but block Facebook
- Allow port 80 (HTTP) to 170.129 (Public).20.101 but block if URL contains “/admin.php”
- Layer 7 firewalls can block known bad certificates and certificate authorities
Network Zoning
Designing networks to improve security by:
- Placing systems with similar security requirements in “zones” protected by firewalls
- These requirements can include:
- Services they run
- Who accesses them
- Who manages them
- Operational criticality
- Data they store/process
- Regulatory requirements
Case-Study Network:
- 20,000+ node network managed by central team
- Two primary data centers with 1,000+ servers
- Historical use of firewalls
- Perimeter firewalls with minimal ruleset put in place a few years ago
- A few firewall protected VLANs in Data Center for certain administrative and research systems
- Other data center VLANs a “hodge-podge” of administrative, academic, and research systems
Network Zoning Project - Overview:
- Move all servers into security “zones” behind network firewalls
- Recognized best-practice (ISO, NIST, SANS, CSC)
- Hardware firewalls required by policy and regulations (PCI, FISMA)
- Asset-based as opposed to perimeter approach to network traffic flow policy
Network Zoning Goals:
- Place all data center servers behind hardware firewall
- Simplify rulesets as much as possible:
- Administrative access
- Services
- User access
- Quicker troubleshooting and incident response
- Improve intrusion prevention and monitoring
- Defense-in-depth
Firewall Contexts:
Context: Firewall contexts can be viewed as “virtual” firewalls on the same hardware
- Reasons for configuring separate contexts include:
- Simplify rule sets while maintaining security requirements
- Isolate systems according to security requirements
- Comply with policy and regulatory controls for isolations, monitoring, and logging
Planned Contexts:
- PCI: Systems processing credit cards
- HIPAA: Systems processing/storing Protected Health Info (PHI)
- ITS: Systems administered exclusively by central IT team
- General: Systems administered by central IT, other IT, and/or vendors
- Management: Systems used to manage network devices, building control, or other embedded devices
- Other possible:
- Research projects
- Professional Schools (Tuck Business, Thayer Engineering)
VLAN Groups:
Grouping of VLANs within a context. These can include:
- DMZ: VLANS with systems directly accessible by Internal and/or External users.
- Production: Production systems only directly accessible by administrators and load balancers.
- Dev/Non-prod: Development and/or non-production systems
VLAN Groups (2):
Grouping of VLANs within a context. These can include:
- DMZ and Production will have both Public and Private (10.x) VLANs
- Dev/Non-prod:
- Firewall rules update testing
- Allows different inbound, outbound and back-end rules
- Policy requirement and best practice
- Minimal impact for admins (different IP and checkbox on request)

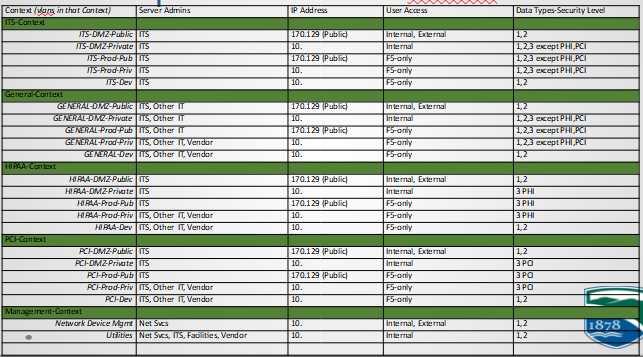

Example Context and VLAN Table:
F5-only means the system only talks to the load balancer. F5 is the maker of big IP which is a data center load balancer.
Data Center Network Zoning Example:
Access-Lists on Cisco:
- Access-lists provide basic firewall capabilities on Cisco Routers.
- Two types:
- Standard:
- Apply to source IP address or Network Only.
- Layer 3
- Extended:
- Apply to source and destination IP address and/or network
- Can also create rule for TCP Ports
- Layer 3 and 4
- Standard:
Creating Access Lists:
Two-Step Process
- In global config mode – use ip access-list command to create list
- Apply list to interface with ip access-group command
- Interface config mode
- Specify in or out.
- Does list apply to packets entering interface (in) or leaving interface (out)
Step 1 – Extended and Standard:
- Standard is: ip access-list standard name_of_list
- Then rules: {permit/deny} {ip_address} {wildcard_mask}
- Extended: ip access-list extended name_of_list
- Rules: {permit/deny} {tcp/udp} {source_ip} {wc_mask} {dst_ip wc_mask} {port}
Standard ACL Example:
1. Create ACL:
- device(config)# ip access-list standard Net1
- device(config-std-nacl-Net1)# deny host 10.157.22.26
- device(config-std-nacl-Net1)# deny 10.16.4.0 0.0.0.255
- device(config-std-nacl-Net1)# permit any** **
2. Apply to interface
- device(config)# int eth 1/1
- device(config-if-e10000-1/1)# ip access-group Net1 in
Extended ACL Example:
1. Create Access List (IP’s are source)
- (config)# ip access-list extended MYACL
- (config-nacl-myacl)# deny tcp host 10.0.0.2 host 10.0.1.2 eq 80
- (config-nacl-myacl)# deny tcp 10.0.0.0 0.0.0.255 10.0.1.0 0.0.0.255 eq 23
- (config-nacl-myacl)# permit ip any any
2. Apply to Interface
- (config)# interface fastEthernet 0/0
- (config-if)# ip access-group MYACL in
Access-list Gotchas
- Rules applied in order – top to bottom
- Hidden “Deny all” by default:
- When access lists are applied to an interface, a default “deny all all” is applied at the bottom
- So, must apply a “permit any” at the end of your list if appropriate
- Regular ACLs cannot be reordered: Must delete and recreate if order is messed up
- Watch your INs/OUTs: Think of the packet flow. IN is entering the interface, OUT is leaving the interface
Homework:
- Configure the network to deny all access format he ISP to the file server
- ISP to router, In Rule
- Configure only web access to the web server
- Router 1, Out rule, Allow port 80 to web server and block everything else, permit any any
Quick Review:
- OSPF is Link State routing protocol
- Sends updates when something changes, more than just hops (cost metrics)
- IP Masquerading is related to?
- NAT
- Firewalls that can process rules operate at the OSI layer?
- If URL then Layer 7
- 2 Primary functions of a Router
- Routing and Forwarding
- Requirement consideration for Network Zoning include all of the following except?
- Virtual or physical hardware
- Included is
- Who manages them
- Regulatory requirements
- Types of data
- BGP Peers are?
- Manually identified neighboring router
- In what year did champlain become co-educational
- 1884
- In the Hierarchical Internetworking model - where does most internal routing occur?
- Distribution
- An Organization needs a separate AS Number for every public IP range it is assigned?
- False
- PAT what is it?
- Many-to-one IP mapping
Classwork: IPv6
Week 13: 11/21/2022
Classwork: Server Load Balancing
Week 14: 11/28/2022
Load Balancing
- Distribution of workload across multiple computing resources
- Can load-balance many resources including
- Network lins
- computers/servers
- cpu’s
- Disk drives
Why Load-Balancing
- Geographic
- Allows you to better allocate resources for economic purposes
- Redundancy
- Security
- Resource isolation and protections
- Supports “Zoning” efforts
- Elasticity
- Grow services based on demand
- Performance
- Maximize throughput
- Improve performance
- Availability
- Minimize overload of single resource
- Increase availability through redundancy
- Efficiency
- Optimize renounce use
Network vs Server
Network
- Balance traffic across network links
Server
- Providing a single service using multiple servers on the backend
Layer 3 - SLB
- Layer 3 SLB only uses the Ip addresses of different servers
- DNS RoundRobin is an example of Layer 3 LSB
- Multiple A Records for same hostname
- Queries yield different answers so different servers are contacted
Layer 4 - SLB
- TCP and UDP ports
- Layer 4 SLB usually uses dedicated load-balancer systems
- Load balancers hosts ”Virtual IPs” (aks Front-ends) with the IP and port that end users use to access a server
- The Load-balancer than brokers the connection with server in the “backend” or “pool”
Layer 7 LB
- Layer 7 LB do Full-Packet Inspection
- Why?
- Make division based on URLs and/or
- Headers
- Content and other tags/metadata
Layer 7 SLB
- Sacrificial Lambs (Grey listing)
- Where you send the bad traffic
- If something looks funky just send it to sacrificial lambs
- Integrating with IDS and firewalls
- TLS termination
- Goes from a public https request to an http request internally
SLB and Security
- End users don’t connect directly to server - but have to pass through the load balancer
- Cloudflare
- Has so much bandwidth they can’t get taken down by a bot net
- The attacker can’t “fill up the pipe”
- Has so much bandwidth they can’t get taken down by a bot net
- SSL/TLS Offload
- SSL/TLS can be processor intensive
- Allows servers to focus on primary functions
SLB Service Monitoring
- Ping
- SNMP
- Nagios
- Grafana
- Particular protocol response
- Presence of a certain resources
Issues
Access Logging
- Does a backend server know the Ip address of the client/source?
- No…
Session Persistence
- No…
- Directing a client’s requests to the same backend server for the duration of a “session”
- Types
- SSl
- Cookie
- Simple persistence based on Ip addresses
SLB Software and Devices
- F5 and NetScaler
- Make hardware applications used in many Data Centers
- Also have “virtual applications” which perform the same function as the hardware application but run on an organization’s hypervisor.
- NGINX and HAProxy are open-source software LB’s
- Also very popular and used by many of the most active Internet Sites
- Software-based - they run on high performance server-hardware
Notes:
- A major issue is that when looking at requests for servers, it will be written ty load balancer losing the source
- Virtual Servers = Virtual IP that is just a listening port/socket that is just a reverse proxy
Classwork: Quiz Review
Week 15: 12/5/2022
- An Authentication header (AH) Provides all of the following except (Phased out because it doesn’t provide encryption)
- Confidentiality *
- Authentication
- Integrity
- Non-repudiation
- IPSEC Transport mode encrypts only the payload of a packet (Tunnel mode will encrypt everything)
- True
- The negotiation protocol that lets two hosts agree on how to build an SA (Secure Association)
- ISAKMP
- How many bits in an IP address
- 128
- How many bits for the network prefix
- 48
- Prefix + Subnet is 64 and that is the Network ID
- 64 for the host ID
- 48
- Ipv6 header has more fields than the IPv4 Header
- False
- SLAAC is when you take the MAC address and use it as the host address and add FFFE to the middle
- All of these are reasons to segment a network except
- Increase hop count between networks
- Make sure to know ACL rules and tricks
- Know what can be used as Access Control Methods
