Week 3: DHCP

Homework - Reading:

The DHCP Server and Routers

• Allows hosts to dynamically obtain its IP address

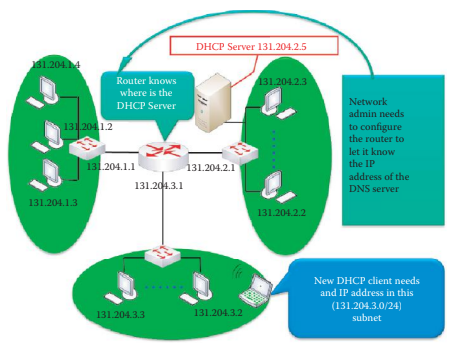

• Above shows a DHCP server setup on a network which has 3 subnets
• The router must be setup in a way that it knows the IP address of the DHCP server
• DHCP must work across routers or through the intervention of BOOTP relay agents

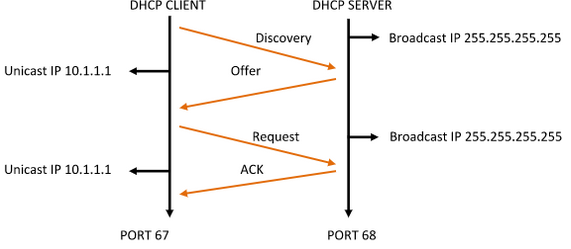

• DHCP DORA (Discover, Offer, Request, Accept)
• DHCP Port Client 68 and Server 67

* DHCP options field: * Subnet mask * Default Gateway * Lease Time * DNS Server * Most DHCP servers are configured to let a client reuse a previously allocated IP * This can reduce the amount of broadcast traffic * A client will broadcast a DHCPREQUEST message on its local subnet. * This message will contain a “Requested IP” ## Class **Dynamic Host Configuration Protocol** What is DHCP? * Statically: Manually entered by the administrator (Boo static is for nerds in data centers) * **Dynamically**: Automatically assigned by the network * Key information that we need: * IP address * Subnet mask * Default gateway * DNS (Domain Name Server)

How does DHCP Work?

1. Send out Broadcast (Discover)
   1. “I need an IP” - New device
   2. Dest IP: 255.255.255.255:68
   3. Src IP: 0.0.0.0:67
   4. Broadcast will go out any ports on the VLAN
2. DHCP Server sends out Offer (Offer)

a. DHCP over different VLANs:

• Relay Agent (DHCP Relay, DHCP helper) Cisco calls it the IP helper
• Router needs to know the IP address of DHCP Server
  • This is so it can unicast it and send over the information
  • DHCP server: 192.168.10.100 | Relay Agent: 192.168.10.100
    • Router would forwards as unicast to 192.168.10.100
    • Src of unicast: The Default gateway address for the VLAN
      • This is how the DHCP Server knows where to send the Offer
• DHCP is like a person lost in new york
• DHCP uses UDP
• Server Port: 67
• Client Port: 68
• DHCP has two primary Operation Phases:
  • Initialization: Client request
  • Renewal: Client asks to renew its lease
• Key Fields
  • Operation Code:
  • Hardware Type:
  • **Hardware Length: **
• DORA:
  • Discover: Client attempts to discover a DHCP server
    • If you spoof Discover you can take all the IP addresses
  • Offer: IP lease offer from the server to client
  • Request: Client requests to use the IP lease sent by the server
  • Acknowledgement: Server sends ack to client that the lease was accepted
  • Without this process you can have DHCP exhaustion attacks
• DHCP snooping
  • Looks at the access port and if one port is asking for more than 1 IP it will shut it down
• BOOTP: RFC 951
  • Only Discover and Offer
• DHCP Renewal
  • T1 Renewing: Process for client to request continued use of the its lease
    • This is at** 50%** through the lease time
    • Just sends to direct IP address
      • Using unicast because it knows the IP address of the DHCP server
    • The client sends DHCP Request packets directly to the server
    • If the server responds with a DHCP Ack, the IP lease is renewed and its time clock restarts.
  • If server doesn’t respond at T1 then it does to T2
  • T2 Rebinding: If the server doesn’t respond to the clients renewal requests we eventually reach the rebinding phase
    • This is at** 87.5%** through the lease time
    • Gets angry and sends a broadcast to look for another DHCP server
      • So it’s allowed to continue using the same IP
  • **DHCP Expiration: **If nothing responds by the time the lease is over
    • IP goes to a 169.125.4.0
      • Self assign address
  • DHCP Relay:
    • Broadcast are Layer 2 only
      • Need a DHCP relay or Helper
        • Picks up broadcast and turns it to unicast and gets it to the DHCP Server
    • Cisco:
      • CISCO IOS uses the “ip helper-address”
      • If DHCP server is 10.16.1.50
      • (Config) interface vlan 100
      • (Config-IP) ip helper-address 10.16.1.50
